Induction Annealing steel tubes

 Views Send Enquiry

Objective To heat steel tubes to 2000 ºF (1093 ºC) in an inert atmosphere
Material 0.1” (2.54mm) diameter stainless steel tube
Temperature 2000 ºF
Frequency 333 kHz
Equipment •
10 kW induction heating system, equipped with a remote workhead containing one 1.0μF capacitor.
• An induction heating coil designed and developed specifically for this application.

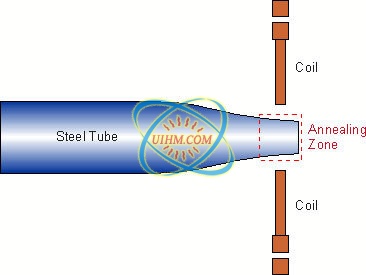

Process A two turn concentrator coil is used to heat the stainless steel tube. The annealing process takes place in an inert atmosphere to prevent oxidation. The stainless steel tube is placed in the inert atmosphere and heats to 2000 ºF (1093 ºC) in 15 seconds to achieve the desired characteristics.
Results/Benefits Induction heating provides:
• Fast, controllable process
• Heat very small areas within precise production tolerances
• Hands-free heating that involves no operator skill for manufacturing
• Even distribution of heating

PDF: Induction Annealing steel tubes
