UM 300AB 高周波誘導加熱装置

 Views

  • Type: UM-300AB-RF
  • Price: Not Public
  • Intro: UM 300AB RF 320KVA 450A 300 kw 60 KHz 380VAC、50 Hz、3 つのフェーズ > 0.2 MPa、30 L/分、< 50 C メイン: 200 X 130 X 80 頭: 160 X 60 X 90 400 + 200
  • Tags: UM-300AB-RF、誘導加熱装置
  • Attn:The photos in this page are reference only, and the actual delivered goods shall prevail!

Parameters of Radio Frequency Induction Heating Machines:

Type Power Supply Input Current Output Power Max. Frequency Input Power Cooling Water Normal Size(cm) Net Weight(kg)
UM-15A-RF 6KVA 23A 5KW 60KHz 220VAC, 50Hz, Single Phase >0.2 MPa, 6 L/Min, <40 ºC  18 X 33 X 41 16
UM-15AB-RF 15KVA 36A 8KW 60KHz 220VAC, 50Hz, Single Phase >0.2 MPa, 7 L/Min, <40 ºC  54 X 20 X 45 24
UM-25A-RF 25KVA 27A 18KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 7.6 L/Min, <40 ºC 56 X 22 X 51 29
UM-25AB-RF 28KVA 37A 25KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 8 L/Min, <50 ºC Main: 64 X 28 X 55
Head: 51 X 26 X 41
38+32
UM-40AB-RF 42KVA 60A 40KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 8 L/Min, <50 ºC Main: 64 X 28 X 55
Head: 51 X 26 X 41
40+32
UM-60AB-RF 63KVA 91A 60KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 9 L/Min, <50 ºC Main: 78 X 37 X 62
Head: 56 X 26 X 47
54+42
UM-80AB-RF 89KVA 120A 80KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 10 L/Min, <50 ºC Main: 106 X 60 X 72
Head: 85 X 42 X 65
85+65
UM-100AB-RF 100KVA 150A 100KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 10 L/Min, <50 ºC Main: 106 X 79 X 70
Head: 86 X 42 X 65
100+70
UM-120AB-RF 128KVA 180A 120KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 12 L/Min, <50 ºC Main: 106 X 70 X 87
Head: 85 X 42 X 75
115+75
UM-160AB-RF 170KVA 240A 160KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 15 L/Min, <50 ºC Main: 106 X 70 X 87
Head: 85 X 42 X 75
135+85
UM-200AB-RF 220KVA 300A 200KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 20 L/Min, <50 ºC Main: 130 X 115 X 80
Head: 95 X 50 X 85
280+120
UM-250AB-RF 280KVA 375A 250KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 25 L/Min, <50 ºC Main: 160 X 116 X 80
Head: 156 X 50 X 85
340+150
UM-300AB-RF 320KVA 450A 300KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 30 L/Min, <50 ºC Main: 200 X 130 X 80
Head: 160 X 60 X 90
400+200
UM-500AB-RF 550KVA 750A 500KW 60KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 50 L/Min, <50 ºC Main: 260 X 130 X 90
Head: 200 X 100 X 90
520+260

Applications
  • Normal quenching
  • Hardening for big depth
  • Brazing for tubes or pipes or bars
  • Heating tubes or pipes or bars
  • Forging normal  workpiece
  • Welding pipes of tubes
  • Quick jointing
  • Annealing or bonding or shrink fitting or tempering
  • Melting small or naormal workpiece

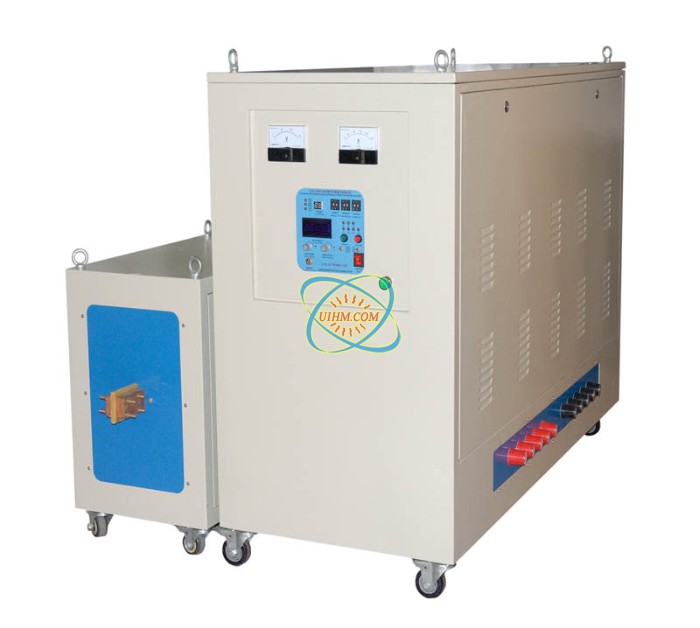

UM-300AB-RF Induction Heating Machine
UM-300AB-RF Induction Heating Machine
